Overview
This compact laboratory pressure vessel is designed for small-scale chemical reactions, sample preparation, and material testing under controlled pressure and temperature conditions. Each vessel is precision-machined from solid 316 stainless steel stock, ensuring exceptional strength, durability, and resistance to corrosion.
To suit a wide range of applications, vessels are offered in multiple volume and configuration variants. Customers can select the vessel size and head fitting package that best matches their experimental requirements.
Lead time: 4–6 weeks from order confirmation.
Key Features
Material of Construction: Solid 316 stainless steel, machined from billet for maximum integrity and corrosion resistance
Volume Range: Available in 25 mL – 1000 mL variants
Closure System:
Screw cap for secure sealing and ease of use
PTFE O-ring provides a chemically inert, leak-tight seal, even under elevated pressures and temperatures

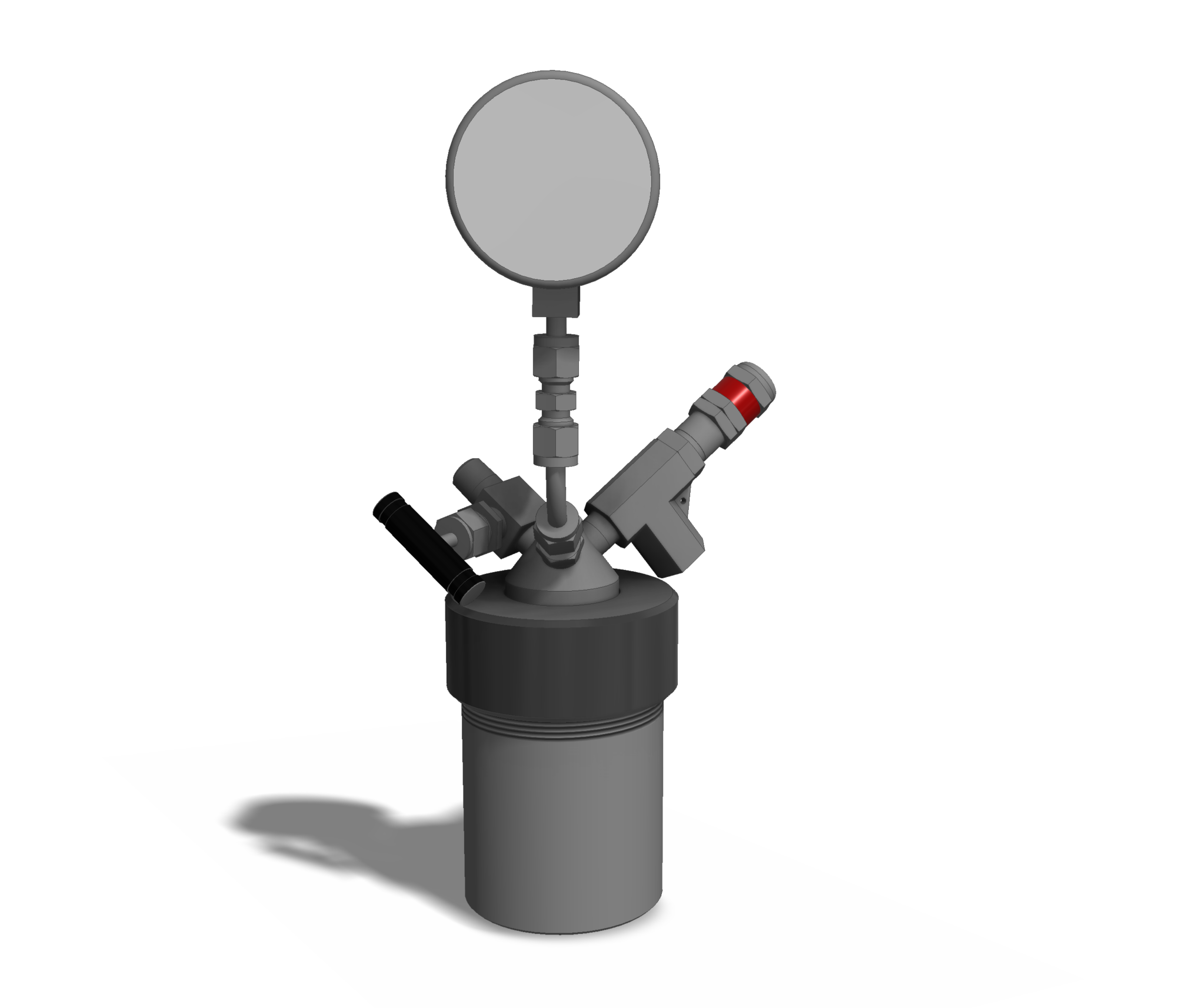

Head Configuration:
Three 1/4" NPT ports in the vessel head for instrumentation and process connections
Offered in variants with or without standard head fittings (gauge, needle shut-off valve, and pressure relief valve)
Heating & Stirring Compatibility: Vessel geometry and base design make it suitable for use with magnetic stirrer hot plates, enabling simultaneous heating and stirring
PED compliant
Variants Available
Applications
High-pressure chemical reactions and synthesis
Catalyst testing and screening
Gas–liquid or liquid–liquid reaction studies
Sample digestion and preparation
Small-scale material compatibility testing
Benefits
Choice of vessel variants to match application needs
Machined from solid stock for maximum strength and reliability
Compact design for benchtop use
Durable construction for long service life in demanding laboratory environments
Easy to assemble, clean, and maintain
Overview
This compact laboratory pressure vessel is designed for small-scale chemical reactions, sample preparation, and material testing under controlled pressure and temperature conditions. Each vessel is precision-machined from solid 316 stainless steel stock, ensuring exceptional strength, durability, and resistance to corrosion.
To suit a wide range of applications, vessels are offered in multiple volume and configuration variants. Customers can select the vessel size and head fitting package that best matches their experimental requirements.
Lead time: 4–6 weeks from order confirmation.
Key Features
Material of Construction: Solid 316 stainless steel, machined from billet for maximum integrity and corrosion resistance
Volume Range: Available in 25 mL – 1000 mL variants
Closure System:
Screw cap for secure sealing and ease of use
PTFE O-ring provides a chemically inert, leak-tight seal, even under elevated pressures and temperatures
Head Configuration:
Three 1/4" NPT ports in the vessel head for instrumentation and process connections
Offered in variants with or without standard head fittings (gauge, needle shut-off valve, and pressure relief valve)
Heating & Stirring Compatibility: Vessel geometry and base design make it suitable for use with magnetic stirrer hot plates, enabling simultaneous heating and stirring
PED compliant
Variants Available
Applications
High-pressure chemical reactions and synthesis
Catalyst testing and screening
Gas–liquid or liquid–liquid reaction studies
Sample digestion and preparation
Small-scale material compatibility testing
Benefits
Choice of vessel variants to match application needs
Machined from solid stock for maximum strength and reliability
Compact design for benchtop use
Durable construction for long service life in demanding laboratory environments
Easy to assemble, clean, and maintain
